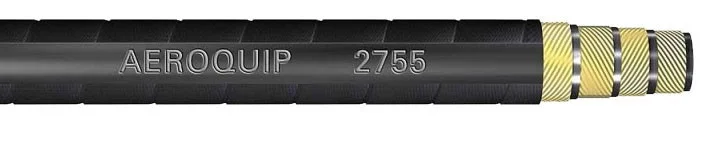

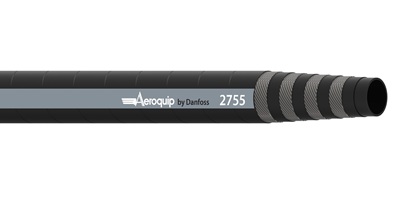

Aeroquip by Danfoss – 2755

High Pressure Hose DIN EN856/4SP

Construction: Nitrile rubber tube, four layer of brass plated steel wire and DURA-TUFF^TM  Chloroprene rubber cover

Application: High Pressure Hydraulic system with petroleum and lubricating oils. Application such as construction equipment and forklifts

Operating temperature -40˚C to +100˚C (short -term +120˚C)

Part No.	HOSE I.D.		Hose O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	KG/MTR
2755-6	9.5	3/8	21.4	790	7100	1960	28400	180	0.76
2755-8	12.7	1/2	24.6	420	6100	1680	24400	230	0.96
2755-10	15.9	5/8	28.2	420	6100	1680	24400	250	1.20
2755-12	19.0	3/4	32.2	380	5500	1520	22050	300	1.50
2755-16	25.4	1	39.7	320	4650	1280	18660	340	2.10
