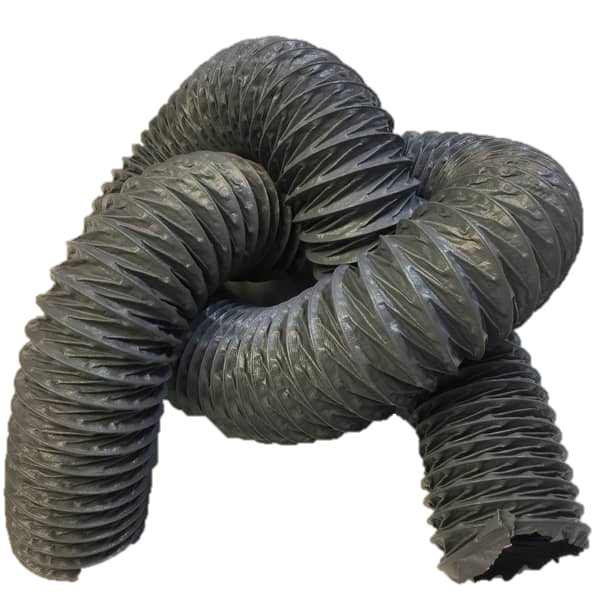

Tube: PVC coated with woven nylon cloth

Reinforcement: The elastic steel wire is completely covered on pipe wall

Cover: Grey colour

Application: Ideal for flexible gas pipeline stem, welding fume purification and suction arms. Suitable for tunnel ventilation in construction, tent and airport gangway heating, engineering waters and fresh air supply in heating system

Temperature Range: -10°C to +110°C (Intermittent: 120°C)

Hose I.D		Hose O.D	Working Pressure		Vacuum Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
50	2	54	0.240	3.50	0.145	2.10	29
63	2-1/2	66	0.200	2.90	0.100	1.40	35
75	3	79	0.160	2.32	0.080	1.16	41
100	4	105	0.120	1.74	0.050	0.72	54
125	5	130	0.095	1.38	0.035	0.50	67
150	6	155	0.080	1.16	0.035	0.50	79
200	8	206	0.060	0.87	0.020	0.29	105
254	10	258	0.045	0.65	0.015	0.22	131
305	12	309	0.040	0.58	0.010	0.14	158
