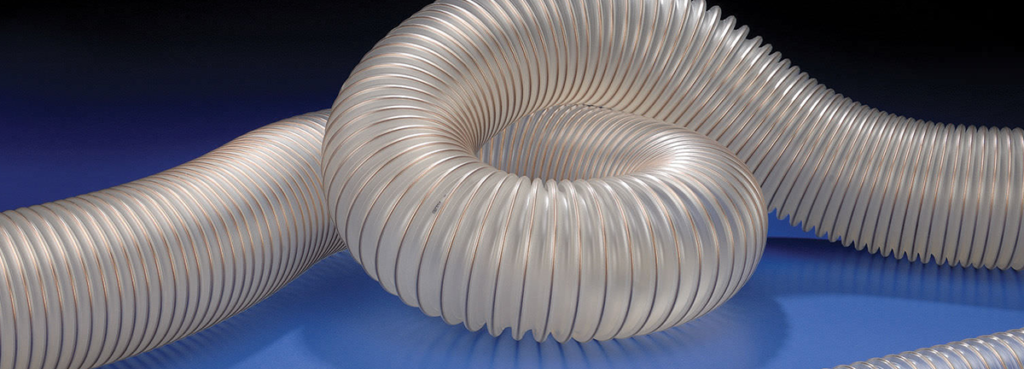

Tube: Special polyether Polyurethane material with firmly embedded steel wire in the pipe wall

Wall Thickness: 0.6 mm

Standard Length: 15 mtr

Application: PU is ideal for the food and pharmaceutical industries including equipment for dry food delivery, vacuum conveying systems, and machinery like mixers, dryers, and packaging machines, along with industrial vacuum cleaners

Temperature Range: – 40°C to +90°C

Hose I.D	Hose O.D	Working Pressure	Vacuum Pressure	Bending Radius
MM	MM	BAR	BAR	MM
25	32	2.72	0.68	23
32	40	2.15	0.44	28
38	46	1.83	0.37	32
40	48	1.74	0.36	33
44	53	1.55	0.32	36
51	58	1.41	0.29	39
60	68	1.18	0.24	45
63	73	1.09	0.22	48
76	84	0.95	0.14	55
80	89	0.39	0.13	58
90	99	0.79	0.12	64
102	109	0.72	0.11	70
110	119	0.65	0.10	76
127	134	0.58	0.09	85
152	159	0.48	0.07	100
160	169	0.45	0.07	106
175	184	0.41	0.06	115
203	209	0.36	0.05	130
225	234	0.32	0.04	145
254	259	0.29	0.04	160
305	309	0.24	0.03	190
