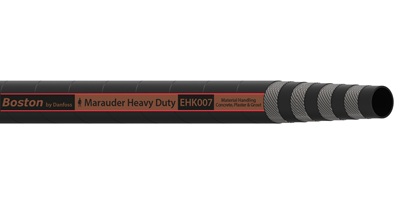

EHK007 Concrete Pump Hose Eaton

Application: For high- pressure concrete pumping, Heavy duty construction for applications needing long lasting durability

Reinforcement: High-Tensile steel cords

Cover Material: Pin-pricked synthetic rubber

Tube Material: Natural and CBR blend

Colour: Black

Part No.	Hose I.D		Hose O.D		Max Operating Pressure		Burst Pressure		Minimum Bend Radius		Weight
	MM	INCH	MM	INCH	BAR	PSI	BAR	PSI	MM	INCH	KG/M	LBS/FT
EHK007-32-100	51	2	70	2.76	85	1233	200	2900	275	10.83	3.03	2.04
EHK007-40-100	63	2.50	88	3.46	85	1233	200	2900	300	11.81	4.48	3.01
EHK007-48-100	76.2	3	102	4.02	85	1233	200	2900	350	13.78	5.46	3.67
EHK007-64-100	101.6	4	130	5.12	85	1233	200	2900	400	15.75	8.46	5.69
EHK007-80-100	127	5	155	6.10	85	1233	200	2900	500	19.69	9.63	6.47
EHK007-96-100	153	6	180	7.09	85	1233	175	2538	650	25.59	10.99	7.39

Operating Temperature: -40°C to +70°C (-40°F to +158°F)
