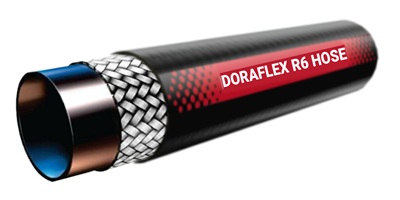

Tube: Black oil-resistant synthetic rubber blend

Reinforcement: High tensile single synthetic textile braid

Cover: Black colour synthetic rubber specially compounded for oil, abrasion and ozone resistance, smooth finish

Application: Low-pressure and low-impulse hydraulic hoses rated between 15 and 35 bar, designed for use with petroleum-based, synthetic, or water-based fluids in hydraulic systems. Ideal for agricultural applications, stationary machinery, and general hydraulic equipment

Operating Temperature Range: -40°C to +100°C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
6.3	1/4	12.7	28	400	110	1600	65
8.0	5/16	14.3	28	400	110	1600	75
10.0	3/8	15.9	28	400	110	1600	75
12.5	1/2	19.8	28	400	110	1600	100
16.0	5/8	23.0	24	350	96	1400	125
19.0	3/4	26.6	21	305	84	1220	150
