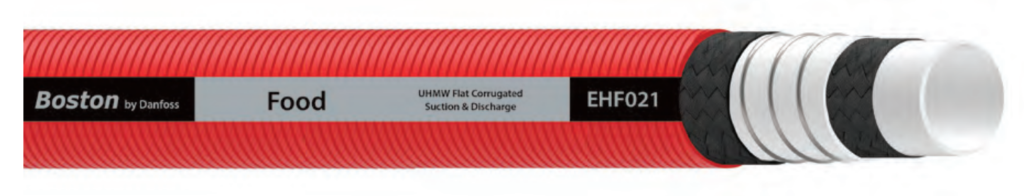

Tube: UHMWPE FDA approved material

Reinforcement: High – Tensile synthetic textile with steel helical wire and anti-static wire.

Cover: Flat Corrugated EPDM rubber

Application: For suction and discharge of food containing high percentage of alcohol

Part No.	I.D.			O.D.		Max. W.P.		B.P.		Min Bend Radius		Vacuum		Weight		Length
	DN	MM	IN	MM	IN	BAR	PSI	BAR	PSI	MM	INCH	KPA	IN/HG	KG/M	LBS/FT	MTR	FT
EHF021-12RD	19	19.0	3/4”	29	1.14	10.5	150	31	450	70	2.76	94.8	28	0.48	0.32	40-61	100
EHF021-16RD	25	25.4	1”	36	1.42	10.5	150	31	450	90	3.54	94.8	28	0.63	0.42	40-61	100
EHF021-20RD	31	31.8	1.1/4”	43	1.69	10.5	150	31	450	130	5.12	94.8	28	0.91	0.61	40-61	100
EHF021-24RD	38	38.1	1.1/2”	50	1.97	10.5	150	31	450	180	7.09	94.8	28	1.06	0.71	40-61	100
EHF021-32RD	51	50.8	2”	64	2.52	10.5	150	31	450	250	9.84	94.8	28	1.53	1.03	40-61	100
EHF021-40RD	60	63.5	2.1/2”	78	3.07	10.5	150	31	450	280	11.02	94.8	28	2.15	1.45	40-61	100
EHF021-48RD	80	76.2	3”	91	3.58	10.5	150	31	450	350	13.78	94.8	28	2.55	1.71	40-61	100
EHF021-64RD	102	101.6	4”	119	4.69	10.5	150	31	450	450	17.72	94.8	28	4.21	2.83	40-61	100
EHF021-80RD	130	127.0	5”	148	5.83	10.5	150	31	450	600	23.62	80.0	24	6.48	4.26	40-61	100

Operating Temperature: -40°C to +80°C
