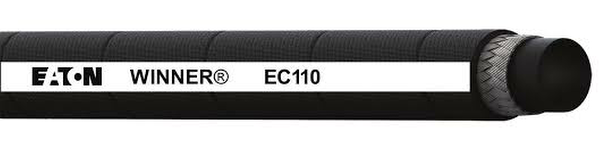

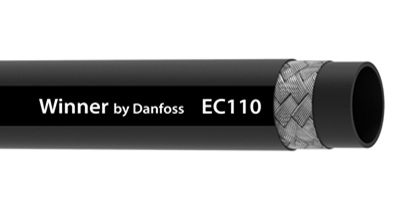

Eaton Winner – EC110 Hi Pressure hydraulic hose

SAE 100R1 AT Type S / EN 853-1 SN

Construction:  Synthetic rubber tube, single wire braid reinforcement, and black synthetic rubber cover MSHA Approved

Application:  Hydraulic system service with petroleum and water-based fluids for general industrial service.

Fitting reference:    Winner two piece non-skive and Aeroquip one piece non – skive.

Operating temperature range:  – 40˚C to +100˚C   (-40˚ F to +212˚F)

Part No.	Hose I.D.		Hose O.D.		Maximum Working Pressure		Minimum Burst Pressure		Minimum Bend Radius		Weight
	Mm	Inch	Mm	Inch	Bar	Psi	Bar	psi	Mm	Inch	kg/m	lb/ft
EC110-04L	6.4	0.25	13.2	0.52	225	3250	900	13000	100.0	3.99	0.22	0.15
EC110-05L	7.9	0.31	14.8	0.58	215	3125	860	12500	115.0	4.53	0.26	0.17
EC110-06L	9.5	0.38	17.2	0.68	180	2600	720	10400	130.0	5.12	0.33	0.22
EC110-08L	12.7	0.50	20.4	0.80	160	2300	640	9200	180.0	7.09	0.41	0.28
EC110-10L	15.9	0.62	23.5	0.93	130	1900	520	7600	200.0	7.87	0.47	0.32
EC110-12L	19.0	0.75	27.5	1.08	105	1525	420	6100	240.0	9.45	0.59	0.40
EC110-16L	25.4	1.00	35.4	1.39	88	1275	352	5100	300.0	11.81	0.87	0.58
EC110-20L	31.8	1.25	43.5	1.71	63	925	252	3700	420.0	16.54	1.20	0.81
EC110-24L	38.1	1.50	50.0	1.97	50	725	200	2900	500.0	19.69	1.40	0.94
EC110-32L	50.8	2.00	63.6	2.50	40	580	160	2320	630.0	24.80	1.91	1.28
