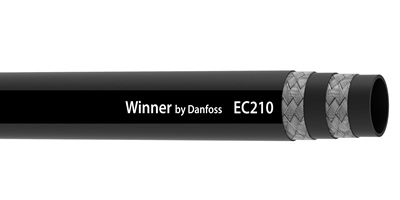

Winner by Danfoss – EC210

SAE 100R2 | EN 853-2SN

Construction: Synthetic rubber tube, double steel wire braid , black synthetic rubber cover MSHA Approved (IC-360/1 • DNV)

Application:   Hydraulic system service with petroleum and water-based fluids for general industrial service

Operating temperature range:  – 40˚C to +100˚C   (-40˚ F to +212˚F)

Part No.	Hose I.D.		Hose O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	KG/M
EC210-04L	6.4	1/4	15.1	400	5800	1600	23200	100.0	0.38
EC210-05L	7.9	5/16	16.7	350	5100	1400	20400	115.0	0.43
EC210-06L	9.5	3/8	19.0	330	4800	1320	19200	125.0	0.54
EC210-08L	12.7	1/2	22.2	275	4000	1100	16000	180.0	0.64
EC210-10L	15.9	5/8	25.4	250	3650	1000	14600	200.0	0.75
EC210-12L	19.0	3/4	29.4	215	3100	860	12500	240.0	0.93
EC210-16L	25.4	1	37.7	165	2400	660	9600	300.0	1.29
EC210-20L	31.8	1-1/4	48.0	125	1800	500	7200	420.0	1.89
EC210-24L	38.1	1-1/2	54.3	90	1300	360	5200	500.0	2.10
EC210-32L	50.8	2	66.9	80	1150	320	4600	630.0	2.76
