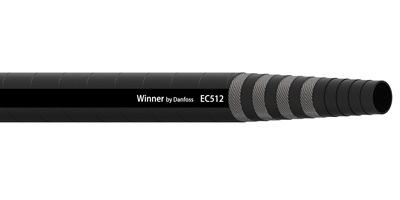

EC512 (Eaton) Meets / Exceeds EN856 4SH

Construction:

• Synthetic Rubber Tube
• 4 Spiral Wire Reinforcement
• Black Synthetic Rubber Cover
• Ink Transfer Lay line

 Application:

• High Pressure Hydraulic System
• Petroleum & Water- Based Fluids
• Construction Equipment
• Agriculture Equipment

Part No.	Hose I.D.		Hose O.D.		Max Operating Pressure		Burst Pressure		Minimum Bend Radius		Weight
	MM	INCH	MM	INCH	BAR	PSI	BAR	PSI	MM	INCH	KG/M	LBS/FT
EC512-12	19.0	0.75	33.0	1.30	420	6100	1680	24400	280	11.02	1.47	0.99
EC512-16	25.4	1.00	40.9	1.61	380	5500	1520	22000	340	13.39	2.04	1.37
EC512-20	31.8	1.25	52.4	2.06	350	5100	1400	20400	460	18.11	2.39	1.61
EC512-24	38.1	1.50	55.1	2.16	290	4200	1160	16800	560	22.05	3.19	2.14
EC512-32	50.8	2.00	69.7	2.74	250	3650	1000	14600	700	27.56	4.37	2.94

Operating Temperature: -40˚C   to  +100˚C   (-40˚F to +212˚F)
