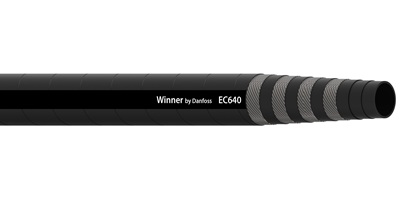

Winner by Danfoss – EC640

Meets: Meets ISO 18752-CC, SAE100 R15 Performance

Construction: Special synthetic rubber tube resistant to mineral, vegetable and glycol based hydraulic oil, Four or Six braid of high tensile strength steel wire, Super high abrasion and weather resistant special synthetic rubber cover

Application: For hydraulic systems with high peak pressure and arduous operating conditions such as high pressure hydraulic circuits on mobile construction equipment, mining equipment, and agriculture machines

Operating temperature: -40°C to +120°C (-40°F to +248°F)

Part No.	Hose I.D.		Hose O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	KG/M
EC640-06	9.5	3/8	20.5	420	6100	1680	24400	65	0.70
EC640-08	12.7	1/2	23.4	420	6100	1680	24400	90	0.92
EC640-10	15.9	5/8	27.0	420	6100	1680	24400	100	1.13
EC640-12	19.0	3/4	29.9	420	6100	1680	24400	150	1.25
EC640-16	25.4	1	37.1	420	6100	1680	24400	210	1.83
EC640-20	31.8	1-1/4	48.4	420	6100	1680	24400	260	3.17
EC640-24	38.1	1-1/2	55.7	420	6100	1680	24400	310	4.40
EC640-32	50.8	2	70.0	420	6100	1680	24400	350	6.28
