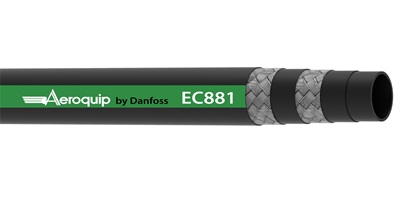

Aeroquip by Danfoss – EC881

Exceeds: SAE 100R16 Type S | EN 857 2SC | ISO 11237-1 Type 2SC

Construction: Dura-Pulse™ patented tube synthetic rubber tube, double wire braid, DURA-TUFF premium abrasion resistant synthetic rubber cover

Application: Medium to high pressure hydraulic systems, petroleum & water-based fluids, construction equipment, agriculture equipment

Operating Temperature: -46°C to +126°C (-50°F to +260°F)

-46º C to +70º C (-50°F to +158º F) for water-based hyd. fluids
0º C to +70º C (+32ºF to 158º F) for water

Part No.	Hose I.D.		Hose O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	KG/M
EC881-4	6.4	1/4	13.6	450	6525	1800	26100	33	0.32
EC881-5	7.9	5/16	15.4	400	5800	1600	23200	38	0.38
EC881-6	9.5	3/8	17.0	400	5800	1600	23200	42	0.42
EC881-8	12.7	1/2	20.9	360	5220	1440	20880	60	0.58
EC881-10	15.9	5/8	24.0	350	5075	1400	20300	68	0.75
EC881-12	19.0	3/4	27.9	330	4785	1320	19140	80	1.03
EC881-16	25.4	1	34.6	280	4060	1120	16240	150	1.47
EC881-20	31.8	1-1/4	43.4	172	2500	688	9980	210	1.75
EC881-24	38.1	1-1/2	51.8	138	2000	552	8000	250	1.91
EC881-32	51.0	2	64.0	110	1600	440	6400	315	2.62
