IS: 10733/83
Application: This hose is primarily intended for loading and unloading of road and rail tanker vehicles, carrying petroleum products.

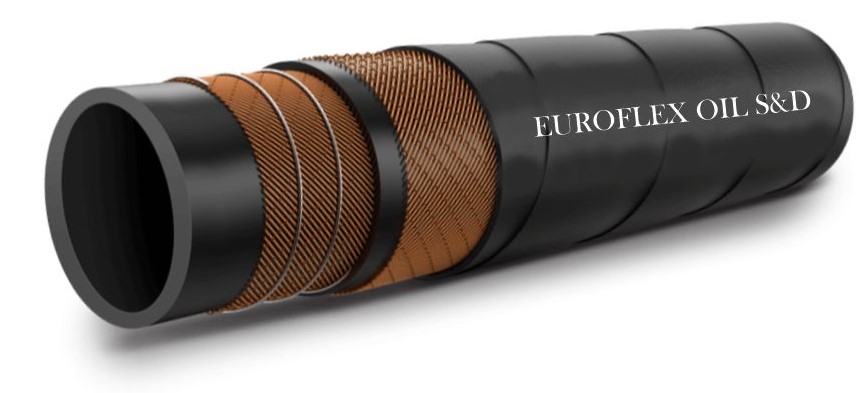

Construction
Lining: smooth lining of suitable rubber compounds; highly resistance to petroleum products.
Reinforcement: Plies of woven textile coated with rubber on both sides with a suitable rubber compound and helical G.I. wire embedded between the fabric plies.
Cover: Smooth or corrugated high grade rubber compound for excellent resistant to weather, abrasion and petroleum products.
End Connections: Sot ends for clamping or can be supplied with built in nipples/flanges on request.
Electrical Bonding: A Copper wire comprising the nos. of strands is incorporated between the reinforcement to provide electrical continuity throughout the hose.
Types:
Type 1A: Rough bore hose, with internal and external helical wire reinforcement corrugated outer cover and for a working pressure of 0.35 MPa & min. B.P. 1.4 MPa.
Type 1B: smooth bore hose, with embedded helical wire reinforcement plain or corrugated outer cover and for a W.P. 0.35 MPa & min. B.P. 1.4 MPa.
Type 2A: Rough bore hose, similar to type 1A but for W.P. of 0.7 MPa & min. B.P. 2.8 MPa.
Type 2B: Smooth bore hose, similar to tupe 1B but for a W.P. of 0.7MPa & min. B.P. 2.8MPa.
Type 3: Smooth bore reeling hose without helical wire reinforcement for a W.P. of 1.0MPa & min. B.P. 4.0 MPa.
No. Bore size
|
Tolerance on Nom. Bore |
Min. Bending radius |
Max. mass per mtr. Of hose for type |
For all types |
| 1A & 1B |
2A & 2B |
3 |
1A |
1B |
2A |
2B |
3 |
Min. thk. Of lining |
Min. thk. Of cover |
| MM |
MM |
MM |
KG/M |
MM |
MM |
| 25.0 |
±1.25 |
– |
– |
190 |
– |
– |
– |
– |
1.28 |
2.00 |
1.25 |
| 31.5 |
±1.50 |
130 |
190 |
230 |
1.05 |
1.35 |
1.80 |
1.95 |
1.65 |
2.00 |
1.25 |
| 38.00 |
±1.50 |
155 |
230 |
280 |
1.35 |
1.65 |
2.10 |
2.40 |
1.88 |
2.00 |
1.25 |
| 50.00 |
±1.50 |
205 |
305 |
360 |
1.88 |
2.25 |
2.78 |
3.00 |
2.25 |
2.00 |
1.25 |
| 63.00 |
±1.50 |
255 |
380 |
– |
2.25 |
3.00 |
3.68 |
4.13 |
– |
2.00 |
1.25 |
| 75.00 |
±2.50 |
305 |
460 |
– |
3.00 |
3.75 |
5.00 |
5.25 |
– |
2.00 |
1.25 |
| 100 |
±3.00 |
410 |
560 |
– |
4.13 |
4.80 |
6.75 |
8.25 |
– |
2.00 |
1.25 |
W.P.: Working pressure, B.P.: Burst Pressure, P.P.: Proof Pressure, 1MPa:10.2 kgf/cm2 , 1 kgf/cm2 :100KN/m2
