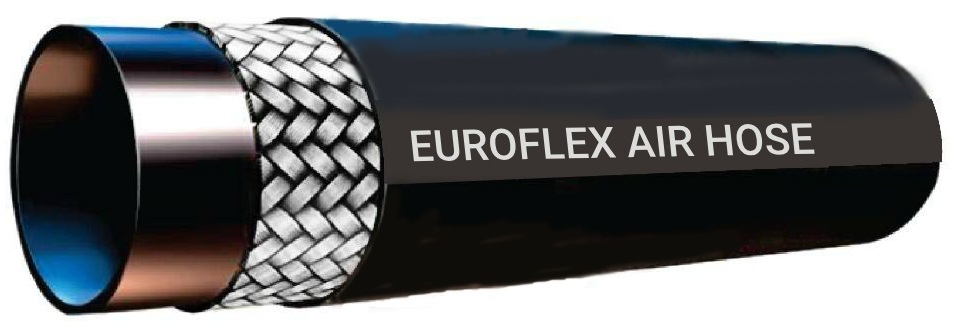

TUBE: Black smooth NR and SBR tube good air tightness

Reinforcement: High tensile single yarn braid

Cover: Smooth Black cover, Ozone and weather resistant

Application: Used to convey compressed air an inert gas in mining agriculture, CNC machine and air compressed equipment etc.

Temperature Range:  -20^o C to +80^o C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
6.0	1/4	13.0	20	300	60	900	70
8.0	5/16	14.5	20	300	60	900	90
10.0	3/8	16.5	20	300	60	900	100
12.7	1/2	20.7	20	300	60	900	120
16.0	5/8	25.5	20	300	60	900	130
19.0	3/4	29.0	20	300	60	900	150
25.0	1	35.0	20	300	60	900	200
