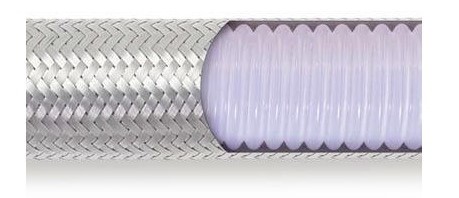

Core: Helically convoluted sintered tube of polytetrafluroethylene (P.T.F.E)

Reinforcement: Single braid of 304/316 series of stainless steel wire

Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature. Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also for some applications the tube can also be made conductive to dissipate electro -static charges.

ID		OD		WP		BP		WT	BR/r		W
INCH	MM	INCH	MM	PSI	BAR	PSI	BAR		INCH	MM	G/M
¼	6.60	0.410	10.4	2500	175	10000	700	0.75	0.8	20	149
5/16	8.18	0.490	12.4	2300	160	9200	640	0.75	0.8	20	170
3/8	9.65	0.540	13.7	2200	150	8800	600	0.75	0.8	20	182
½	12.83	0.725	18.4	1960	135	7840	540	0.75	1.0	25	289
5/8	16.00	0.827	21.0	1450	100	5800	400	0.80	2.0	50	349
¾	19.18	1.020	25.9	1160	80	4640	320	0.90	2.6	65	494
7/8	22.23	1.170	29.7	870	60	3480	240	1.00	3.1	80	565
1	25.53	1.331	33.8	800	55	3200	220	1.00	3.6	90	677
1.1/4	31.88	1.680	42.7	665	45	2660	180	1.00	4.4	110	891
1.1/2	38.23	1.890	48.0	510	35	2040	140	1.00	6.0	150	959
2	50.93	2.420	61.5	365	25	1460	100	1.00	8.0	200	1309

Temperature Range: Continuous: -54°C to 260°C
