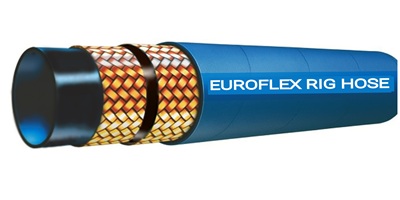

Tube: Black colour, Synthetic rubber tube resistant to high temperature air

Reinforcement: Double high tensile steel wire braid

Cover: Blue colour, Pin pricked synthetic rubber, Wrap finish

Application: This hose is specially designed for compressed air application drilling rigs, quarries, construction and general industry

Operating Temperature Range: -40°C to +135°C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
38.0	1-1/2	52.0	90	1300	360	5500	510
50.0	2	66.5	90	1300	360	5500	635
