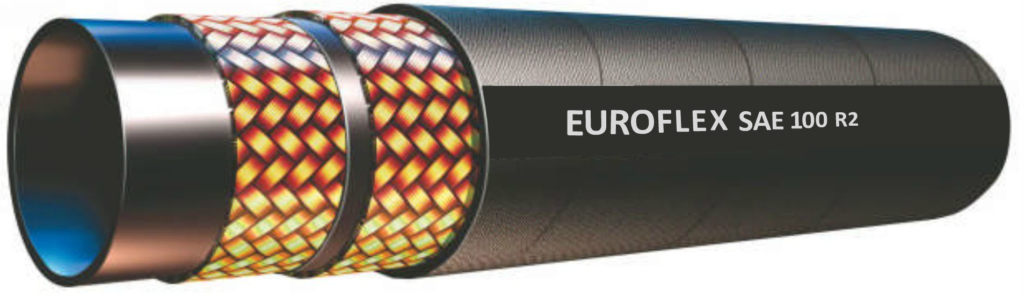

Application: high pressure hydraulic lines 50 to 415 bar. For use with petroleum, synthetic or water base fluids in hydraulic systems. Suitable for agricultural, earthmoving & material handling equipments and machineries/ systems.

Reinforcement: double steel wire braids

Cover: black colour, synthetic rubber resistant to abrasion and weather, oil and ozone.

Core: black colour, synthetic rubber resistant to oil and water.

ID		OD		WP		BP		MIN. BEND RADIUS
INCH	MM	INCH	MM	BAR	PSI	BAR	PSI	INCH	MM
¼”	6.4	0.59	15	400	5800	1600	23200	3.94	100
5/16”	7.9	0.653	16.6	350	5075	1400	20300	4.53	115
3/8”	9.5	0.748	19	330	4800	1320	19200	5	127
½”	12.7	0.874	22.2	275	4000	1100	16000	7	178
5/8”	15.9	1	25.4	250	3625	1000	14500	7.88	200
¾”	19.1	1.153	29.3	215	3118	860	12470	9.45	240
1	25.4	1.5	38.1	165	2400	660	9600	11.82	300
1.1/2”	31.8	1.901	48.3	125	1800	500	7200	16.54	420
1.1/2”	38.1	2.149	54.6	90	1300	360	5200	19.7	500
2	50.8	2.65	67.3	80	1150	320	4600	25	635
2.1/2″	63.5	3.15	80	70	1015	280	4060	29.9	760
3″	76.2	3.68	93.4	55	800	220	3190	35.4	900
4″	101.6	4.67	118.5	50	725	200	2900	46.5	1180

Temperature Range: Continuous: -40°C to +100°C Intermittent: +120°C
