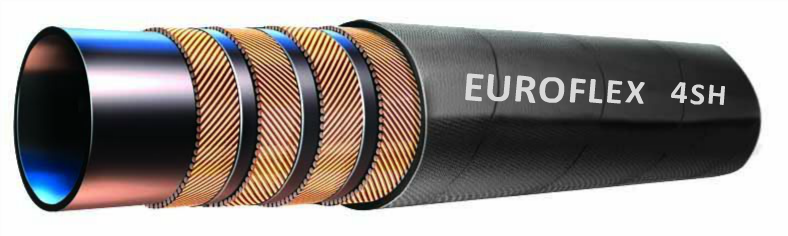

Tube: Black colour, Synthetic rubber resistant to oil and water

Reinforcement: Four braid high tensile steel spiral wire

Cover: Black colour, Synthetic rubber resistant to abrasion and weather, Oil and ozone, Wrap finish

Application: Designed for high-pressure applications utilizing petroleum-based hydraulic fluids

Operating Temperature Range: -40°C to +100°C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
19.0	3/4	32.2	420	6090	1680	24360	280
25.4	1	38.7	380	5500	1520	22360	340
31.8	1-1/4	45.5	350	5000	1400	18800	460
38.1	1-1/2	53.5	290	4200	1160	16800	560
50.8	2	68.1	250	3600	1000	14400	700
63.5	2-1/2	81.5	200	2900	800	11600	800
