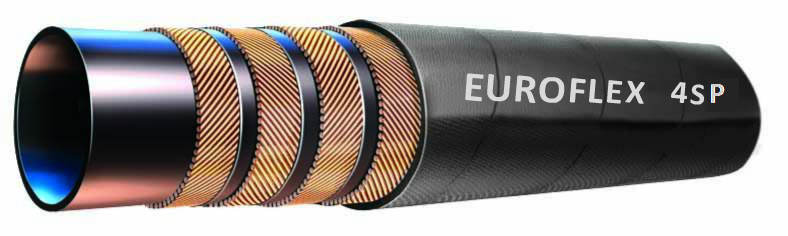

Tube: Black colour, Synthetic rubber resistant to oil and water

Reinforcement: Four braid high tensile steel spiral wire

Cover: Black colour, Synthetic rubber resistant to abrasion and weather, Oil and ozone, Wrap finish

Application: Designed for high-pressure applications utilizing petroleum-based hydraulic fluids

Operating Temperature Range: -40°C to +100°C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
6.5	1/4	17.8	450	6525	1800	26100	150
9.5	3/8	21.4	445	6450	1780	26000	180
12.7	1/2	24.6	420	6090	1680	24360	230
15.9	5/8	28.2	420	6090	1680	24360	250
