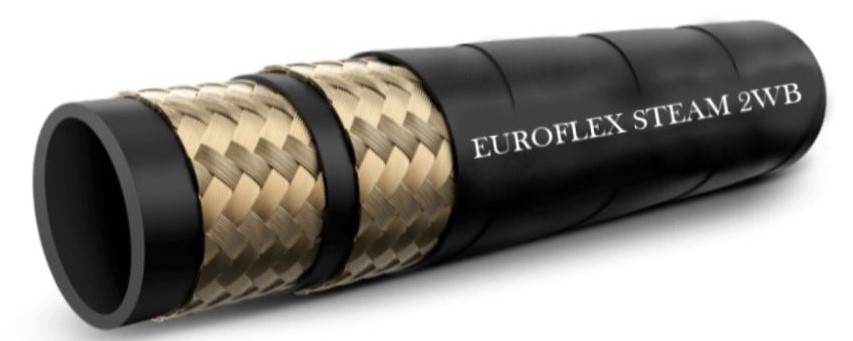

TYPE 3 IS:10655/99

Application: Recommended for transfer and handling of all type steam, saturated & superheated up to +232 degree cal. temp.

Tube: Synthetic rubber blend.

Reinforcement: Two braid of high tensile brass coated steel wire

Cover: weather, abraision & Ozone resistance synthetic rubber.

Nominal I.D.		Mean O.D.		Max working pressure		Minimum Burst pressure		Max vacuum	Min. Bend Radius
INCH	MM	INCH	MM	BAR	PSI	BAR	PSI	INCH HG	MM
1/2″	12.5	0.98	25	17	250	170	2500	25	180
3/4”	20.0	1.28	32.5	17	250	170	2500	20	250
1”	25.0	1.52	38.5	17	250	170	2500	15	300
1-1/4”	31.5	1.71	43.5	17	250	170	2500	14.8	375
1-1/2”	38.0	1.95	49.5	17	250	170	2500	17.9	455
2”	51.0	2.52	64.0	17	250	170	2500	23.6	600

Temperature Range: -30^O C to + 232^OC
