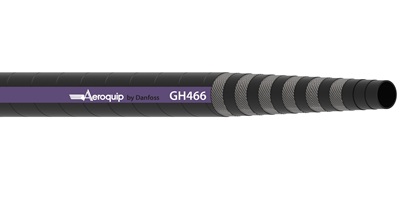

Aeroquip by Danfoss – GH466

Exceeds: SAE 100R15 | ISO 3862 Type R15 | EN856 R13

Construction: Synthetic rubber tube, Six layers of high tensile spiral wire, DURA-TUFF premium abrasion resistant synthetic rubber cover

Application: High pressure hydraulic systems with constant high working pressure for use with petroleum and water-glycol based fluids

Operating temperature: –40°C to +121°C (–40°F to +250°F)

Part No.	Hose I.D.		Hose O.D.	Working Pressure		Bursting Pressure		Bending Radius	Weight
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM	KG/M
GH466-20	31.8	1-1/4	49.4	420	6100	1680	24400	420	3.48
GH466-24	38.1	1-1/2	57.3	420	6100	1680	24400	500	4.63
GH466-32	50.8	2	71.7	420	6100	1490	21600	630	6.70
