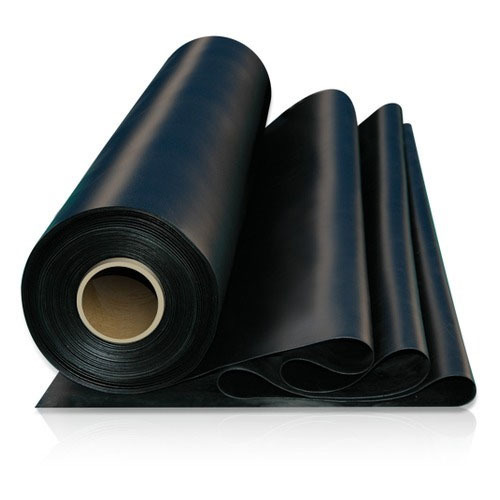

Nitrile rubber sheets are generally popular as Oil resistance rubber sheets as these shows very good resistance to petroleum based products. NBR rubber sheets are produced in accordance with BS 2751 standard.
Colour: Black
Main Properties: Euroflex NBR rubber sheets offers excellent properties like impermeability to gases, resistance to inorganic chemicals, high resistivity to all petroleum products, high temperature resistance etc.
Main Limitations: Bad resistance to anti-oxidant agents, chlorines, moderate mechanical strength comparing to NR, moderate weather resistance.
Typical applications: Euroflex NBR rubber sheets mostly used in gasket industry where gasket comes in contact to petroleum product mainly by manufactures of electrical transformers/ oil drilling contractors, sealing against gases etc. this rubber sheet is also used in food applications when especially compounded.
| Common name |
Chemical name |
Nomenclature |
Hardness Range |
Low Temperature Resistance |
Heat Resistance |
Tensile Strength |
Elongation Strength |
| Nitrille |
Nitrile Butadine Rubber |
NBR |
Shore A 40-95 |
-20 °C |
Max. Continuous -100° C Max. intermittent- 130° C |
Up to 150 kg /cm sq. |
Up to 400 % |
| Specific Gravity |
Thickness |
Width |
Length |
Surface |
Insertion |
Packaging |
Compression set |
| 1.32-1.50 gm/cm³ |
0.5-6 mm 6-60mm |
1.0/1.2m 1.0/1.2m |
10 m 2.0/2.4m |
Plain (smooth)/ fabric marked/patterned. |
Possible –Nylon/cotton/polyester |
Rolls/flats |
Max.40% for 22hrs at 70° C |
