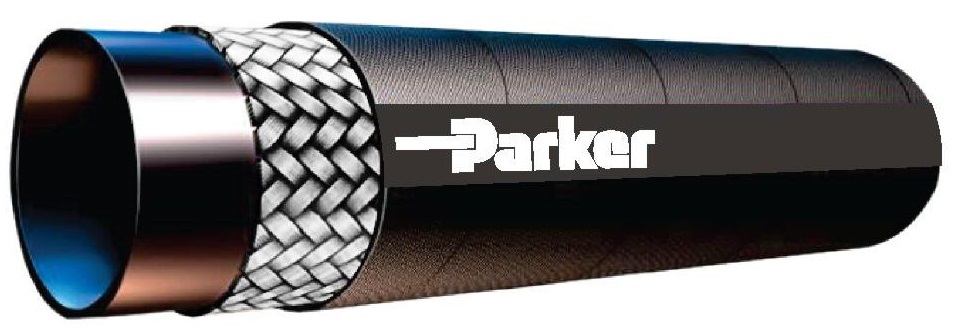

Exceeds: EN 854

Tube: NBR-Synthetic rubber

Reinforcement: One synthetic textile braid

Cover: SBR-Synthetic rubber

Application: Recommended for hydraulic low pressure  lines, return lines & drain lines

Temperature range: -40°C to +100°C

Part No.	Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
	MM	INCH	MM	BAR	PSI	BAR	PSI	MM
SAE100R6PM-4PM	6.4	1/4	12.7	28	400	112	1600	65
SAE100R6PM-4PM	7.9	5/16	14.3	28	400	112	1600	75
SAE100R6PM-4PM	9.5	3/8	15.9	28	400	112	1600	75
SAE100R6PM-4PM	12.7	1/2	19.8	28	400	112	1600	100
SAE100R6PM-4PM	15.9	5/8	23.0	24	350	96	1400	125
SAE100R6PM-4PM	19.0	3/4	26.6	21	300	84	1200	150
SAE100R6PM-4PM	25.4	1	32.5	13	190	52	760	230
