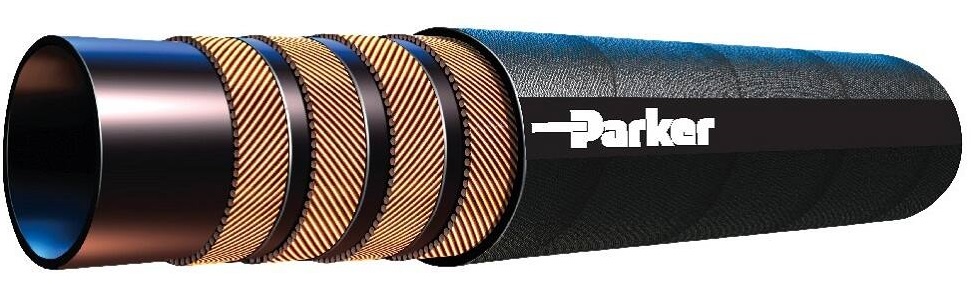

SAE 100 R13

Application: Recommended for very high [pressure hydraulic power lines, constant pressure on all hoses size.

Inner tube: CR-Synthetic rubber

Reinforcement: Four or six spiral steel wire

Outer cover: CR-Synthetic rubber

Impulse cycles:

Specified: 500000 cycles

Tested up to: 1000000 cycles

Part No.	ID		ROD	OD	WP		Min Bend Radius		Approx. Weight
	INCH	MM	MM	MM	PSI	BAR	INCH	MM	LBS/FT	KG/M
781MSHA-12	3/4	19.0	29.0	31.9	5000	350	9.5	240	1.04	1.55
781MSHA-16	1	25.4	35.6	38.5	5000	350	12.0	300	1.40	2.08
781MSHA-20	1.1/4	31.8	46.8	50.0	5000	350	16.5	420	2.59	3.85
781MSHA-24	1.1/2	38.1	54.3	57.9	5000	350	20.0	500	3.23	4.81
781MSHA-32	2	50.8	68.1	70.9	5000	350	25.0	640	4.48	6.67

Temperature range: -40°C to +125°C
