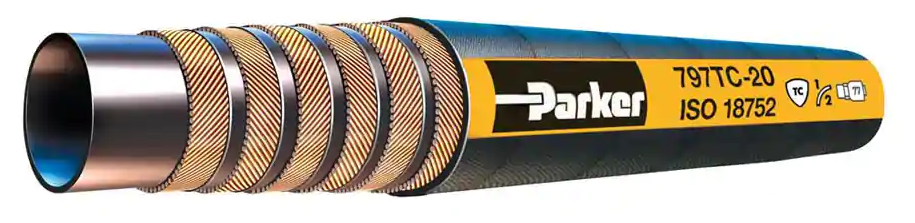

SAE 100 R15

Application: Recommended for very high pressure hydraulic power lines. Constant pressure on all hoses sizes.

Inner tube: CR-Synthetic rubber

Reinforcement: Four or six high tensile steel wire spirals

Outer cover: SBR-Synthetic rubber

Impulse cycle:

Specified: 500000 cycles

Tested to be: 1000000 cycles

PART No.	ID		ROD	OD	WP		Min. Bend Radius		Approx. Weight
	INCH	MM	MM	MM	PSI	BAR	INCH	MM	LBS/FT	KG/M
792PM-12PM	3/4	19.0	28.4	32.0	6000	420	10.5	265	1.08	1.60
792PM-16PM	1	25.4	35.2	38.5	6000	420	13.0	330	1.41	2.10
792PM-20PM	1.1/4	31.8	46.8	49.6	6000	420	17.5	445	2.62	3.90
792PM-24PM	1.1/2	38.1	54.3	57.1	6000	420	21.0	530	3.43	5.11

Temperature range: -40°C to +125°C
