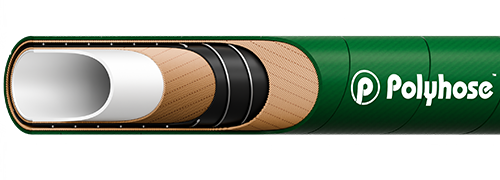

Inner tube: White colour, Synthetic rubber with XLPE liner

Reinforcement: Plies of synthetic textile cords with steel helix and two cross anti static copper wires

Cover: Green colour EPDM, wrapped type, abrasion and weather resistant

Application: Excellent in handling petroleum based products, hydrocarbon solvents, oxidising chemicals, major strong acid and alkali as well as organic fluid etc.,

Temperature Range: Continuous: −20˚C to +120˚C

Item Code	Hose I.D		Hose O.D	Working Pressure		Bursting Pressure
	MM	INCH	MM	BAR	PSI	BAR	PSI
PH 642-12	19.0	3/4	30.0	17	250	51	750
PH 642-16	25.0	1	35.0	17	250	51	750
PH 642-20	32.0	1-1/4	44.0	17	250	51	750
PH 642-24	38.0	1-1/2	50.0	17	250	51	750
PH 642-32	51.0	2	67.0	17	250	51	750
PH 642-40	63.0	2-1/2	79.0	17	250	51	750
PH 642-48	76.0	3	94.0	17	250	51	750
PH 642-64	102.0	4	120.0	17	250	51	750
