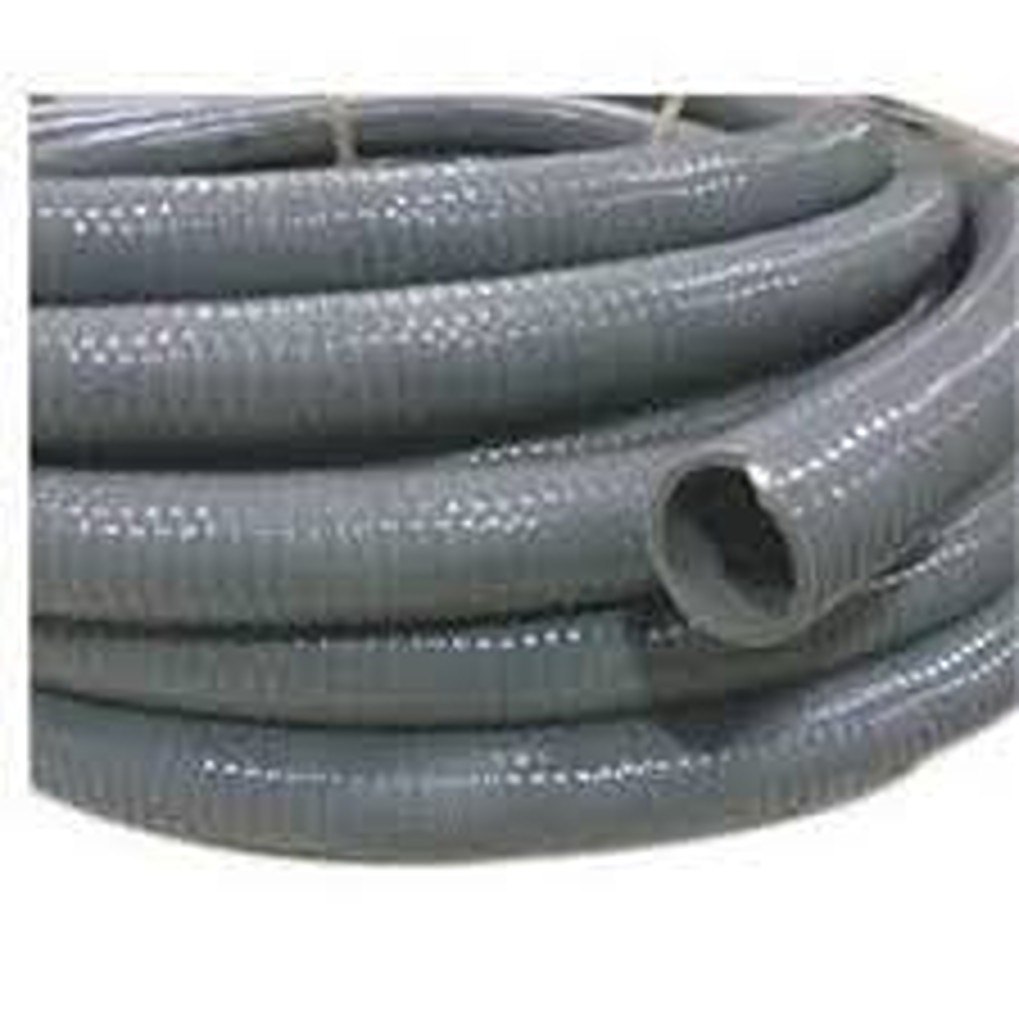

Core: Plasticized PVC, Grey
Reinforcement: The PVC wire is helically wound and fused to the soft inner walls, resulting in a thin, smooth wall that is well-protected from crushing
Cover: Thermo-Compound, transparent
Application: This high-performance hose offers exceptional resistance to pressure, abrasion, and rough handling, making it ideal for demanding applications. It is specifically designed for heavy-duty use in construction, engineering, and various industrial sectors, including cement conveying, paper mills, the chemical industry, coal mines, shipping, sewage disposal, and general industrial services
Temperature Range: Continuous: -10°C to +60°C
| Hose I.D |
Hose O.D |
Working Pressure |
Bursting Pressure |
Bending Radius |
Standard Length |
| MM |
INCH |
MM |
BAR |
BAR |
MM |
MTR/ROLL |
| 25.4 |
1 |
31.5 |
8.0 |
25.0 |
50 |
30 |
| 31.8 |
1-1/4 |
38.8 |
7.0 |
21.0 |
70 |
30 |
| 38.0 |
1-1/2 |
46.3 |
5.5 |
18.0 |
80 |
30 |
| 50.8 |
2 |
60.8 |
4.5 |
18.0 |
110 |
30 |
| 63.5 |
2-1/2 |
74.5 |
4.5 |
18.0 |
140 |
30 |
| 76.2 |
3 |
87.2 |
4.5 |
18.0 |
175 |
30 |
| 101.2 |
4 |
114.2 |
4.0 |
14.0 |
240 |
30 |
| 127.0 |
5 |
141.0 |
3.0 |
10.0 |
280 |
15 |
| 152.4 |
6 |
169.4 |
2.5 |
9.0 |
400 |
15 |
| 203.2 |
8 |
224.4 |
2.5 |
8.0 |
650 |
6 |
| 254.2 |
10 |
284.4 |
2.5 |
8.0 |
1000 |
6 |
