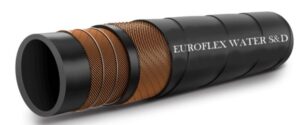

Tube: Black smooth tube of specially compounded synthetic rubber

Reinforcement: High strength synthetic plies with helical wire

Cover: Black Wrap finish synthetic rubber cover, plain outer

Application: Engineered for the suction and discharge of water, non-corrosive inert fluids, wastewater, and sewage. Suitable for use in industrial, municipal, and utility applications

Temperature Range: -20°C to +80°C

Hose I.D		Hose O.D	Working Pressure		Bursting Pressure		Bending Radius
MM	INCH	MM	BAR	PSI	BAR	PSI	MM
51.0	2	65.0	20	300	60	900	210
64.0	2-1/2	80.0	20	300	60	900	260
76.0	3	92.0	20	300	60	900	310
102.0	4	122.0	20	300	60	900	450
125.0	5	146.0	20	300	60	900	570
150.0	6	176.6	20	300	60	900	690
