Application: For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for agriculture, earthmoving & material handling equipments and machineries/systems.

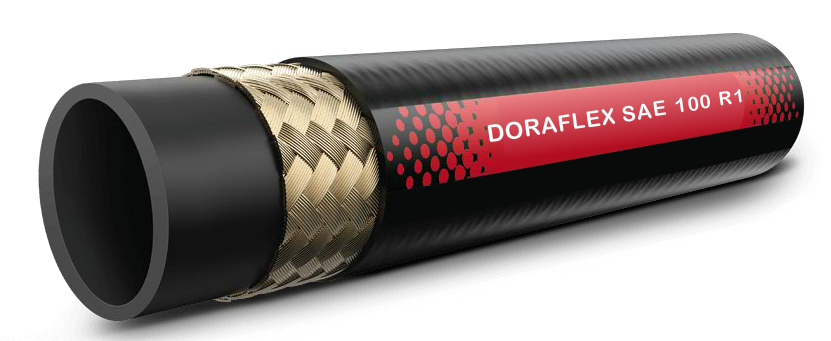

Reinforcement: Single steel wire braid

Cover: Black colour, synthetic rubber resistant to abrasion and weather, oil and ozone.

Core: Black colour, synthetic rubber resistant to oil and water.

ID		OD		WP		BP		MIN. BEND RADIUS
INCH	MM	INCH	MM	BAR	PSI	BAR	PSI	INCH	MM
¼”	6.4	0.527	13.4	225	3263	900	13050	3.94	100
5/16”	7.9	0.59	15	225	3263	900	13050	4.53	115
3/8”	9.5	0.685	17.4	180	3045	840	12180	5	127
½”	12.7	0.811	20.6	175	2538	700	10150	7	178
5/8”	15.9	0.933	23.7	130	2030	560	8120	7.88	200
¾”	19.1	1.9	27.7	105	1525	420	6100	9.45	240
1	25.4	1.401	35.6	88	1275	359	5100	11.82	300

Temperature Range: Continuous: -40°C to +100°C Intermittent: +120°C
