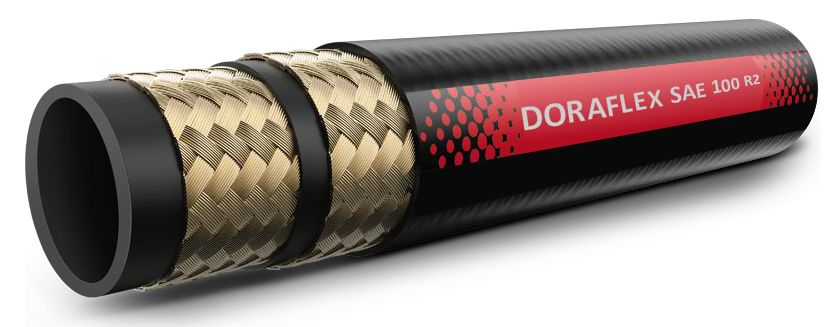

Tube: Black, oil-resistant synthetic rubber
Reinforcement: Double braid high-tensile steel wire for superior strength and durability
Cover: Black synthetic rubber, highly resistant to abrasion, weathering, oil, and ozone exposure, smooth finish
Application: Designed for use with petroleum-based, synthetic, or water-based hydraulic fluids. Ideal for demanding applications in agriculture, earthmoving, material handling equipment, and various industrial hydraulic systems
Operating Temperature Range: -40°C to +100°C (Intermittent: +120°C)
| Hose I.D |
Hose O.D |
Working Pressure |
Bursting Pressure |
Bending Radius |
| INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
| 6.4 |
1/4 |
15.0 |
400 |
5800 |
1600 |
23200 |
100 |
| 7.9 |
5/16 |
16.6 |
350 |
5075 |
1400 |
20300 |
115 |
| 9.5 |
3/8 |
19.0 |
330 |
4785 |
1320 |
19140 |
130 |
| 12.7 |
1/2 |
22.2 |
275 |
4000 |
1100 |
16000 |
180 |
| 15.9 |
5/8 |
25.4 |
250 |
3630 |
1000 |
14500 |
200 |
| 19.1 |
3/4 |
29.3 |
215 |
3120 |
860 |
12325 |
240 |
| 25.4 |
1 |
36.8 |
175 |
2538 |
700 |
10150 |
300 |
Temperature Range: Continuous: -40°C to +100°C Intermittent: +120°C
