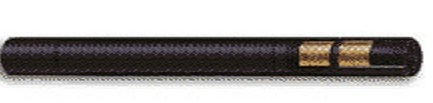

Core: Black colour, synthetic rubber resistant to oil and water

Reinforcement: Double Wire Braids

Cover: Black Cover, Synthetic rubber resistant to abrasion and weather oil and ozone

Application: Hydraulic jacking system with petroleum and water based fluids. 10,000 PSI static pressure only.

ID		OD		WP		BP		BR/r		W
INCH	MM	INCH	MM	PSI	BAR	PSI	BAR	INCH	MM	KG/M
¼”	6.4	0.58	14.7	10000	690	20000	1380	3.9	100	0.377
3/8”	9.5	0.74	18.8	10000	690	20000	1380	5.1	130	0.602

Temperature Range: Continuous: -40°C to +100°C
